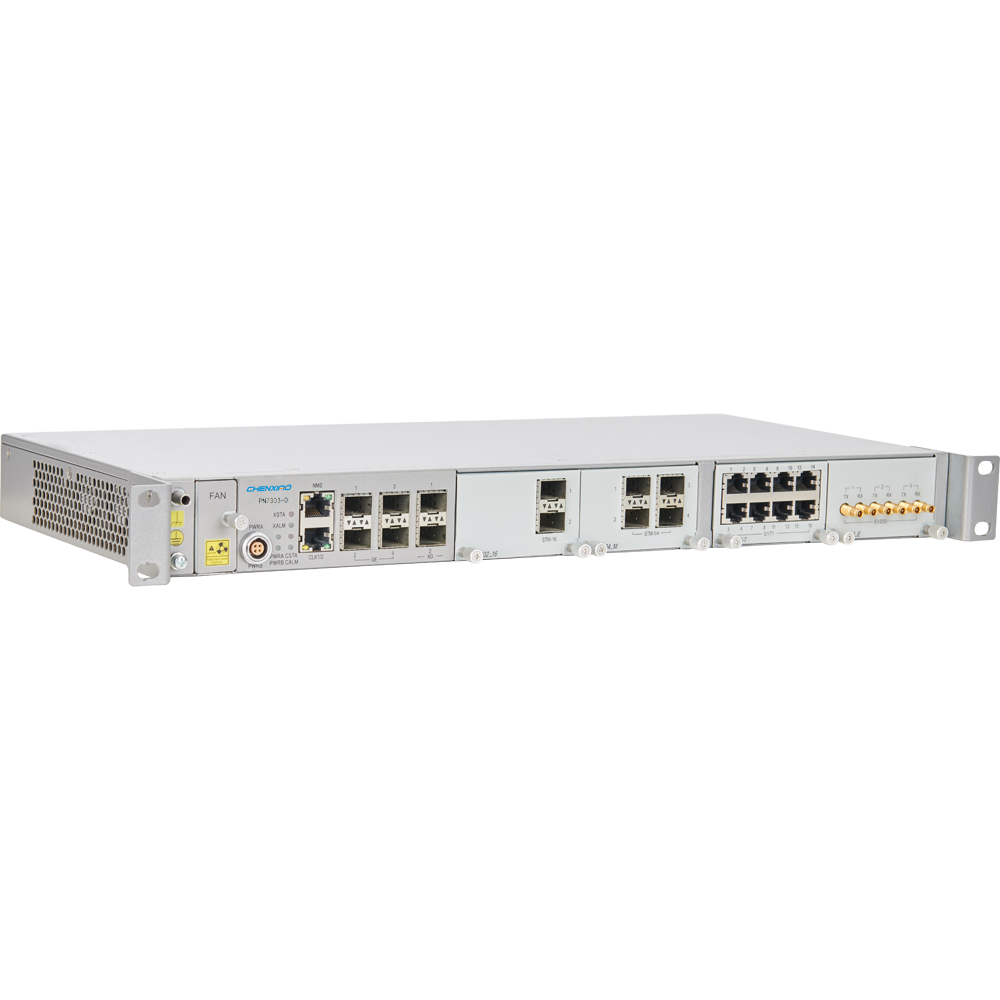

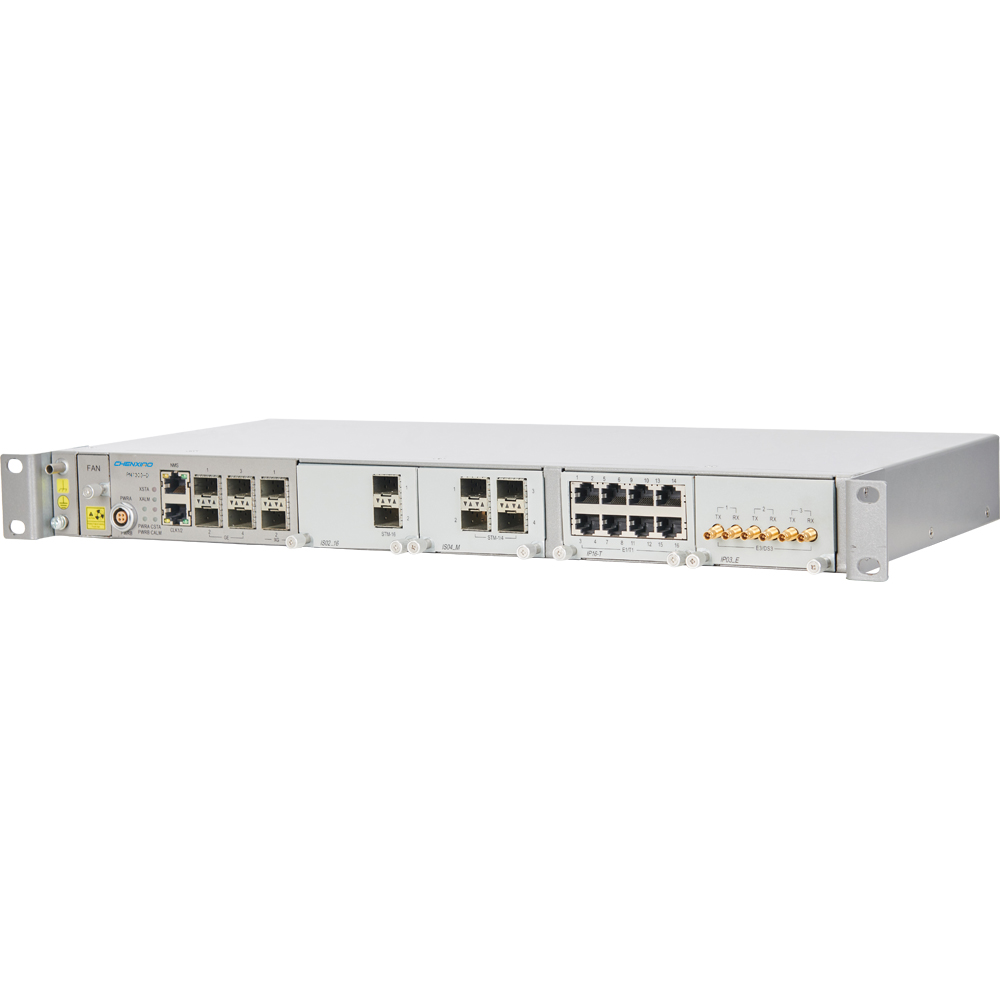

PN7303-D

TECHNICAL SPECIFICATIONS:

Physical:

• Height : 44.5mm (1RU)
• Width : 442mm
• Depth : 210mm
• Dual DC Power Feeds
• AC power with external adapter
• Power Consumption (No Modules): 55 Watts
• Max Power Consumption (4 Modules): 110Watts
• Temperature Range: -5°C to +65°C

Interfaces:

• Fixed Interfaces:
  • 2x10GE (SFP+)
  • 4xGbE/FE (SFP)
• 4 slots. Available Modules:
  • 16xE1/T1,RJ45 (Max 4)
  • 3xE3/D3,CC4 connector (Max 4)
  • 4xSTM-1 SFP (Max 4)
  • 4xSTM-1/4 SFP(Max 2)
  • 2xSTM-16SFP(Max 2)
  • 8xGbE/FE SFP(Max 2)
  • 1x10GE SFP+ and+1xGbE SFP (Max 2)
• Max Interfaces
  • E1/T1: 64
  • E3/DS3: 12
  • STM-1: 16
  • STM-4: 8
  • STM-16:4
  • GbE: 22
  • 10GE: 4

TDM Circuit Emulation:

• Clear channel : E1, T1, E3, DS3, STM-1, STM-4, STM-16
• Channelized  Interfaces: E3, STM-1, STM-4, STM-16  (VC-12, VC-3, VC-4) ; DS3 (VC-11)
• RFC 4842 Synchronous Optical Network/Synchronous Digital Hierarchy (SONET/SDH) Circuit Emulation over Packet (CEP)
• RFC 4553 Structure-Agnostic TDM over Packet (SAToP)

Timing and Synchronization:

• Synchronous Ethernet (G.8261, G.8262)

• IEEE 1588v2:
  • Boundary Clock, Transparent Clock, Ordinary Clock (G.8275.1/2)
  • Frequency Profile (G.8265.1)

MPLS-TP:

• Static LSPs
• Static Single Segment (SS) pseudowires
• Static Multi-Segment (MS) pseudowires
• VPLS/H-VPLS

OAM:

• MPLS-TP OAM (G.8113.1/G.8113.2)
• ITU-T Y.1731 End-to-end Performance Monitoring and AIS
• 802.3 Link OAM
• 802.1 CFM OAM
• Hardware-based delay and loopback measurement with nanosecond resolution

Network Protection:

• LSP 1:1 linear protection
• LSP SNC protection
• LSP ring protection
• Single segment (SS) pseudowire 1:1 protection
• Multi-segment (MS) pseudowire 1:1 protection
• 802.1AX Link Aggregation (UNI/NNI) with LACP
• MSP 1+1/1:1
• RSTP (IEEE 802.1Q)
• Link Pass-Through (LPT)

Quality of Service & Traffic Management:

• L2Classification: VLAN, PRI, MAC address, TPID
• L3 Classification: IP address, DSCP, port number, TOS
• Connection Admission Control (CAC)
• Policing (CIR, CBS, EIR, and EBS; Color-Blind Mode and Color-Aware Mode)
• Shaping
• Congestion Avoidance: WRED
• 8 Service Classes
• Scheduling: SP, DWRR, SP+DWRR

Ethernet Functions:

• VLAN (IEEE 802.1Q)
• Q-in-Q (IEEE 802.1ad)
• 9600 bytes jumbo frame
• VLAN manipulation: stack/switch/strip
• Flow control (IEEE 802.3x)
• IGMP snooping (V1/V2/V3)

Management:

• Transport Network Management System
• 7090 LCT NE Management System
• In-band Management VLAN
• Out-band Management Interface (100M Ethernet, RJ45)
• Alarm Interface
• OSPF Layer 3 DCN
• Zero Touch Provisioning (ZTP)
• SFTP
• SSHv2
